EGYPTEX BAGS

Since the early 1970's EGYPTEX Co. worked hard to provide the market with high efficiency bags which are made from carefully selected raw materials and developed specially to extend lifetime of the bags which will lead to reduce the need for emergency shutdowns which reduce the maintenance cost.





EGYPTEX Filter bags used in wide variety of applications and industries such as:
  • Cement factories
  • Fertilizer factories
  • Flour mill & Bakeries
  • Wheat storage
  • Mines
  • Chemical factories
  • Petroleum projects
  • Brick works
  • Food industries
  • Foundries
  • Steel factories and many other industrial applications
HOW TO CHOOSE THE RIGHT BAG FOR YOUR APPLICATION?

The success in achieving high filtration efficiency for specific filtration process depends mainly on the success of choosing the suitable filter bags for your application, from many perspectives such as:

  • WORKING CONDITIONS
  • THE TYPE OF FABRIC (FILTER MEDIA)
  • THE DESIGN OF THE BAGS, CAGES AND CELL PLATE
  • THE INSTALLATION METHOD OF BAGS TOGETHER WITH THE CAGES


WORKING CONDITIONS

The Working conditions, in which the bag will be installed on, are most important parameters required for choosing the correct filter media:

  • Temperature
  • Dust practical size
  • Chemical characteristics of dust (acidic, alkali .... etc.)
  • Dust load
  • Electrostatic effect of dust
  • Humidity
  • Type of filtration method (Jet-Pulse, reverse air, shaking .... etc)


THE DESIGN OF THE BAGS

EGYPTEX technical team is working hard to enhance and develop every single detail in bags fabrication to achieve best quantity and performance, also our highly skilled technical team have the ability to fabricate filter bags starting from standard designs up to any custom-made filter bags despite of how the fabrication difficulties they may face.

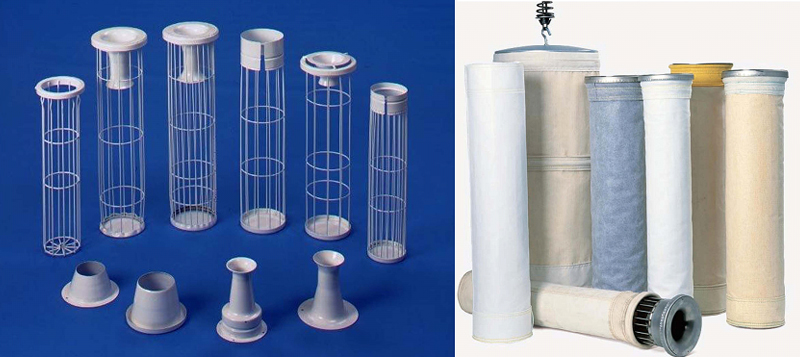

THE DESIGN OF THE CAGES

  • The design of cages and venture, also the way of fixing the bag with the cage into the cell plate, is a critical part.
  • (you can refer to  AQUA MISR cages design)


THE TYPE OF FABRIC (FILTER MEDIA)

Following are some considerations you may need to keep in mind when choosing the suitable filter fabric (filter media) for your applications: are as the following:

  • Air permeability of the material (fabric weight per square meter)
  • Fabrics finish and surface treatments/membranes

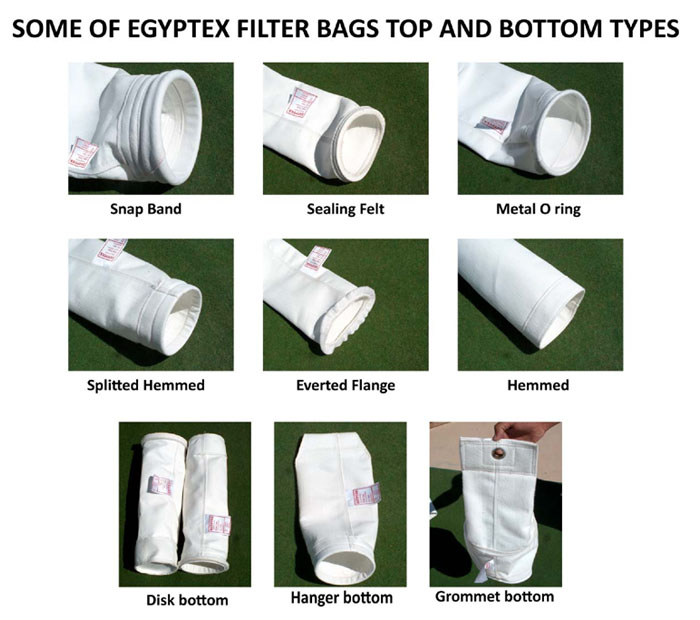

  • Bag configurations (top / bottom / diameter / length / sewing threads)

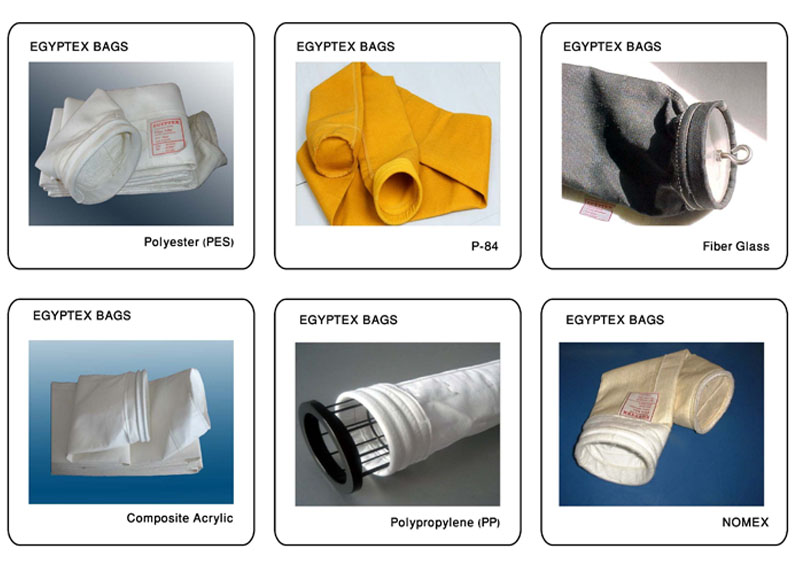

Some of Available Fabrics

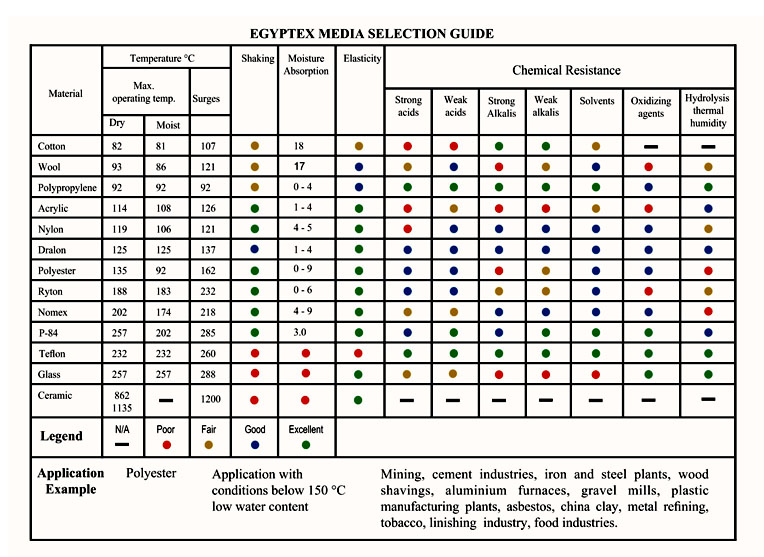

                 You can refer to Egyptex Filter Media Selection Guide in order to help you in choosing the right filter media





THE DESIGN OF CELL PLATE

One of the most important points for achieving high efficiency filtration is the way of installing the bags and cages into the cell plate

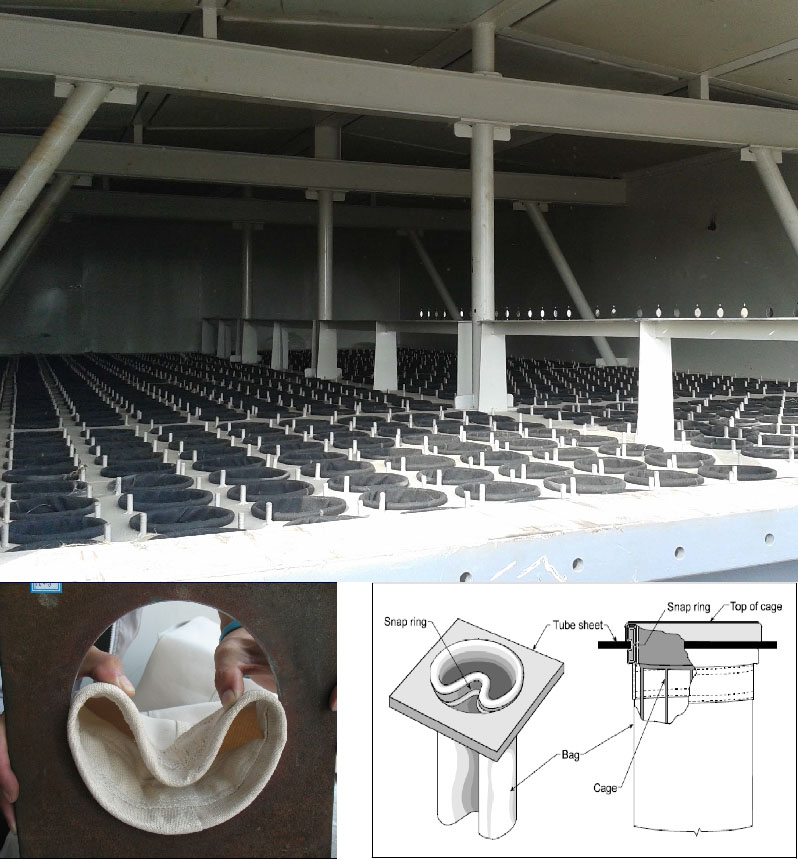

These photos explain how to install snap ring type bags.

Our sister company AQUA MISR Co. uses EGYPTEX Bags in all supplies of bag filters, due to high efficiency you will gain by uses Egyptex Bags, this provide by our customers also measured emissions comes out of AQUA MISR Bag Filters which not exceeds 25mg/m3; you can refer to EAM bag filters reference list.
